Manual mode:
Is used when the machine is loaded with armature for first time or for testing of: testing of hydraulics,
pulling, and cutting, measuring or turning of the whell.
Automatic mode:
Is used for automatic pulling and straightening of armature, It cuts certain number with certain length.

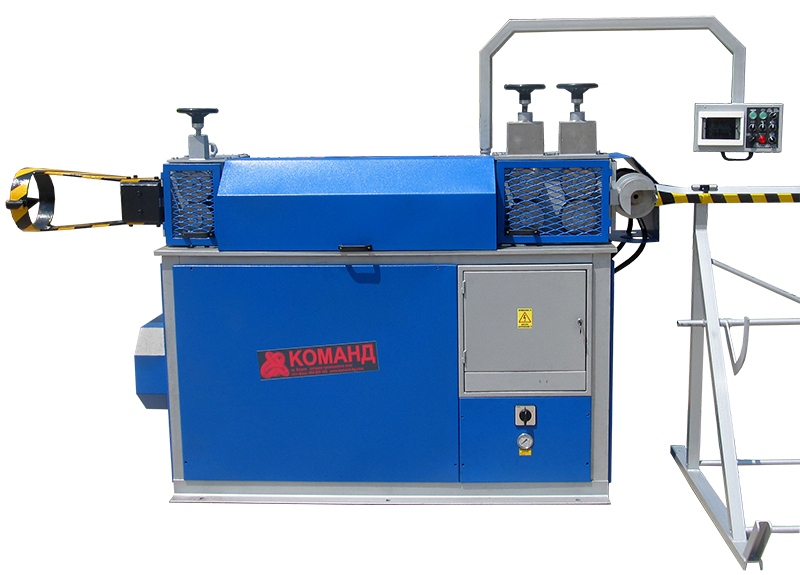

The straightening-cutting machine mainly consists of three modules:
1. Unwinding device;
2. Straightening-cutting module;
3. Frame.
|
|
Diameter of armature, mm |
ô6 ÷ ¹16 |
|
External diameter of bunch, mm |
< 1550 |
|
Internal diameter of bunch, mm |
>500, >800 |
|
Speed of pulling, m/min |
up to 100 |
|
Spins of the whell, min-1 |
1680 |
|
Time to cut, min |
0,0025 |
|
Pulling capacity, N |
10650 |
|
Length ot cutting*, m |
0,1 ÷ 99 |
|
Descrepancy in the length of cutting, mm |
±1 |
|
Number of cuts for one cycle |
1 ÷ 9999 |
|
Power, kW |
45 |
|
Voltage, V |
380 |
|
Weight, kg. |
|
Straightening-cutting module |
1800 |
|
Frames |
140 |
|
Unwinding device |
1060 |
|
Total |
3000 |
|
Measurements L x B x H, mm |
|
Straightening-cutting module |
2400 x 2000 x 850 |
|
Frames |
12400 x 1200 x 1250
|
|
Unwinding device |
2500 õ 1900 õ 3500 |
|
