straightening cutting machine 10mm – 12mm

to ф10 (ф12)

STRAIGHTENING-CUTTING MACHINE up to ⌀10 (⌀12)
The straightening-cutting machine is designed for uncoiling, straightening, and cutting reinforcing steel up to ⌀10 (⌀12) from coils with an outer diameter up to 1550 mm and a weight up to 1000 kg.

Technical Specifications
Manual mode:
Only for loading metal into the machine and the testing of individual nodes.
Auto mode:
Automatically pulls and straightens the rebar, cutting a set number of pieces to the desired length.

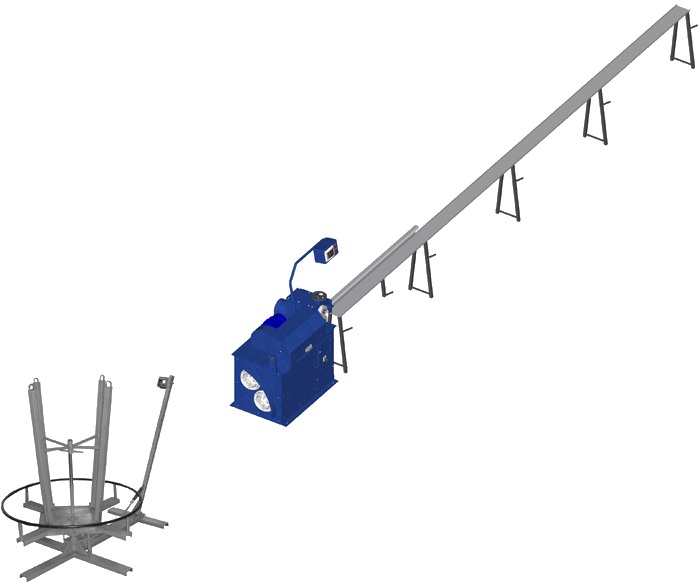

The straightening-cutting machine mainly consists of three units:

Uncoiling device;
Straightening-cutting module;
Racks.
* – The cutting length is for a rack consisting of 4 sections of 2 meters each. If a longer length is required, additional sections can be added.
Rebar Diameter, mm ⌀6 to ⌀10 (⌀12)
Outer Diameter of Coil, mm < 1550
Inner Diameter of Coil, mm > 790
Pulling Speed, m/min 46 to 60
Spindle Speed, min-1 1580
Cutting Time, min 0.0025
Pulling Force, N 9730
Cutting Length*, m 0.1 to 99
Deviation from Cutting Length, mm ±5
Number of Cuts per Cycle 1 to 9999
Power, kW 11
Voltage, V 380
Weight, kg.
Straightening-Cutting Module 940
Racks 150
Uncoiling Device 340
Total 1430

Dimensions L x B x H, mm
Straightening-Cutting Module 1500 x 850 x 1700
Racks 2000 x 400 x 1000 – 1 pc.
2000 x 400 x 900 – 3 pcs.
Uncoiling Device 1600 x 1600 x 2000
